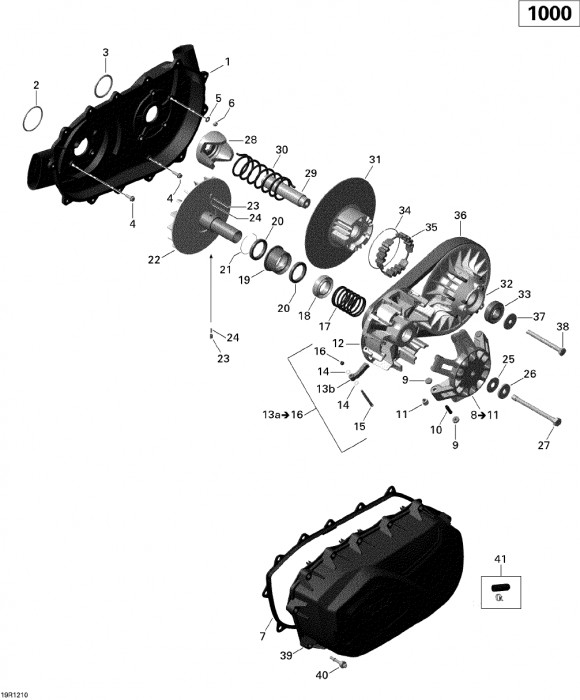

01 420611408 CVT Air Guide 1,160,-
02 420430408 O-Ring 125,-
03 420631088 O-Ring 125,-
06 232561414 Elastic Stop Nut 78,-
07 420430126 Gasket 764,-
08 420280522 Governor Cup Ass'y. 8,296,-
09 420281296 Slider Shoe Set 1,316,-
10 420233895 Roller Sleeve 185,-
11 420229994 Roller 210,-
12 420280467 Outher Haft 5,069,-
13a 420248606 Centrifugal Lever Kit 1,968,-
17 420238617 Compression Spring 510,-
18 420627577 Spring Seat 595,-
19 420257195 Drive Pulley Clutch 2,718,-
20 420632377 Ball Bearing 1,260,-
21 420245951 Retaining Ring 410,-
22 420280374 Inner Half 7,190,-
23 420229577 Spring Sleeve 566,-
24 420239134 Spring 78,-
25 420627920 Thrust Washer 155,-
26 420627765 Spring Washer 368,-
27 420641855 Hex. Screw 538,-
28 420280472 Cam 2,010,-
29 420220914 Driven Pulley Shaft 2,477,-
30 420238177 Compression Spring 850,-
31 420280238 Inner Half Ass'y 6,230,-
32 420280178 Outer Half Pulley Ass'y. 7,060,-
33 420932421 Ball Bearing 450,-
34 420245910 Retaining Ring 311,-
35 420660124 Torque Gear 425,-
36 715000302 V-Belt 2,800,- af 2,500,-
37 420627590 Thrust Washer 300,-
38 420441485 Hex. Screw 290,-
39 420611395 Variator Cover 2,860,-
40 420440560 Torx Screw 180,-
41 707001179 Drain Plug Kit 283,-
Ceny jsou včetně DPH.
