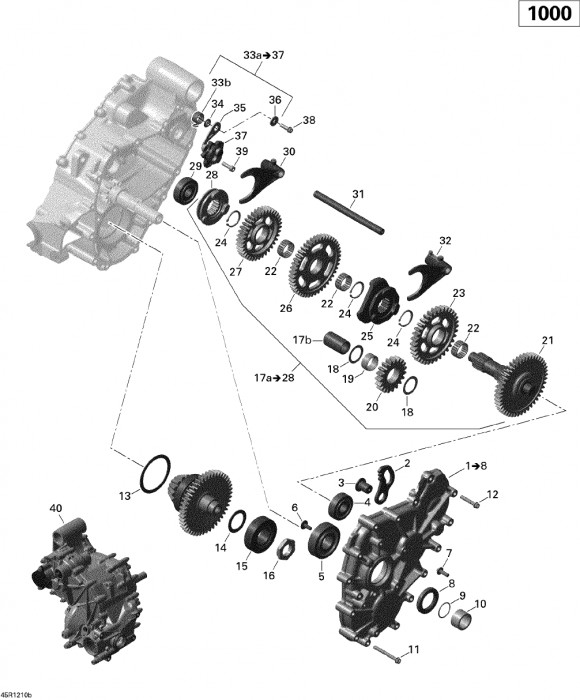

1 XXX LH Gear Housing, Gear Box.1 to 8
2 420257658 Parking Lock Lever 3,242,-
3 420647120 Collar Sleeve 538,-
4 420932815 Ball Bearing 552,-
5 420932825 Ball Bearing 637,-
6 420241529 Torx Screw M6 X 16 188,-
7 420441430 Distance Screw M6 78,-
8 420950087 Oil Seal 410,-
9 420631610 O-Ring 110,-
10 420247117 Distance Ring 765,-
13 XXX Shim Set. See Item 40, Gear Box
14 XXX Shim Set. See Item 40, Gear Box
15 XXX Roller Bearing. See Item 40, Gear Box
16 XXX Hex. Nut M24 X 1.5. See Item 40, Gear Box
17a 420281150 Gear Set. 17a to 28> 32,887,-
17b XXX Intermediate Gear Shaft
18 420944479 Thrust Washer 150,-
19 420932930 Needle Bearing 453,-
20 XXX Intermediate Gear, 19 Teeth
21 XXX Main Shaft
22 420632070 Needle Bearing 300,-
23 420434870 Gear Pinion, 34 Teeth 1,840,-
24 420845771 Retaining Ring 250,-
25 420257951 Shifting Sleeve 1,440,-
26 420434861 Gear Pinion, 44 Teeth 1,560,-
27 420434853 Gear Pinion, 37 Teeth 3,794,-
28 420257942 Shifting Sleeve 1,840,-
29 420932815 Ball Bearing 552,-
30 420257628 Shift Fork 2,492,-
31 420258386 Fork Spindle 424,-
32 420257618 Shift Fork 3,724,-
33a 420248532 Index Lever 33a to 37> 679,-
33b XXX Index Spring
34 XXX Step Ring
35 XXX Index Lever
36 XXX Washer
37 XXX Index Washer
40 420685802 Gear Box 113,780,-
